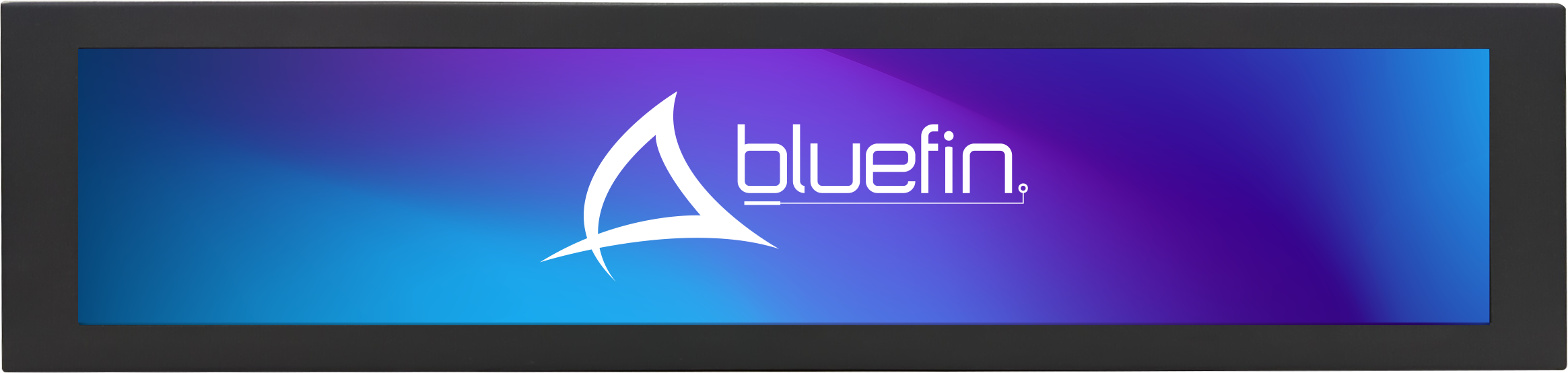

20.9’’ Ultrawide Flex-OS Screen

  • Finished housing

  • 1920x360 Resolution

  • 500nit Brightness

  • Optional touch screen, optional Wi-Fi

  • Built in SoC Options. Included HDMI™ connectivity

Operating Systems Built In

Get your screen with your choice of system-on-chip built inside! Choose from options including:

BrightSign HS145

Intel Ocean (Windows, Linux x64, Chrome-OS Flex)

Rockchip (Android)

Our Most Flexible Display

Flex-OS Screens feature included HDMI connectivity, with no built in player required! If you do select a built in player, you can still plug in an external device and the screen will automatically change inputs. Upgrade, replace, or quickly swap between players without hanging a new screen!

Mechanical Drawings

Specifications

DISPLAY

20.9'' LCD Screen
Resolution: 1920x360
Max Brightness: 500 nits
Viewing Angle: 89/89/89/89
Contrast: 1000CR
Optional: Capacitive Touch

SYSTEM

Included HDMI™ connectivity
mini-USB touch screen override
Optional Embedded Players:

INPUT / OUTPUT

HDMI™-In
mini-USB touch screen control
1x Micro-SD
1x USB 2.0
Phoenix GPIO (4-pin Bi-Directional)
3.5mm RS232 Serial
RJ45 Ethernet
3.5mm Analog/Digital Audio Out
Optional Wi-Fi

Phoenix GPIO only supported with BrightSign. Only HDMI™ and touch control ports available when no player is installed.

HOUSING / MOUNTING

Finished Non-Touch

Size: 21.9 x 5.8 x 2.1’’
Weight: 4.7kg
Mounting: VESA 75x75mm, M4x6mm

Finished Touch Screen

Size: 22.8 x 6.6 x 2.2’’
Weight: 6kg
Mounting: VESA 75x75mm, M4x6mm

POWER

Adapter Style: Micro Molex
Adapter Output: 12V 3A
USA Adapter SKU: 20-0150-0641
International Adapter SKU: 20-0150-0653
Power over Ethernet (PoE+) 802.3at

20.9’’ Finished Flex-OS Screen
Download Mechanical Drawing

20.9’’ Finished Flex-OS Touch Screen
Download Mechanical Drawing
