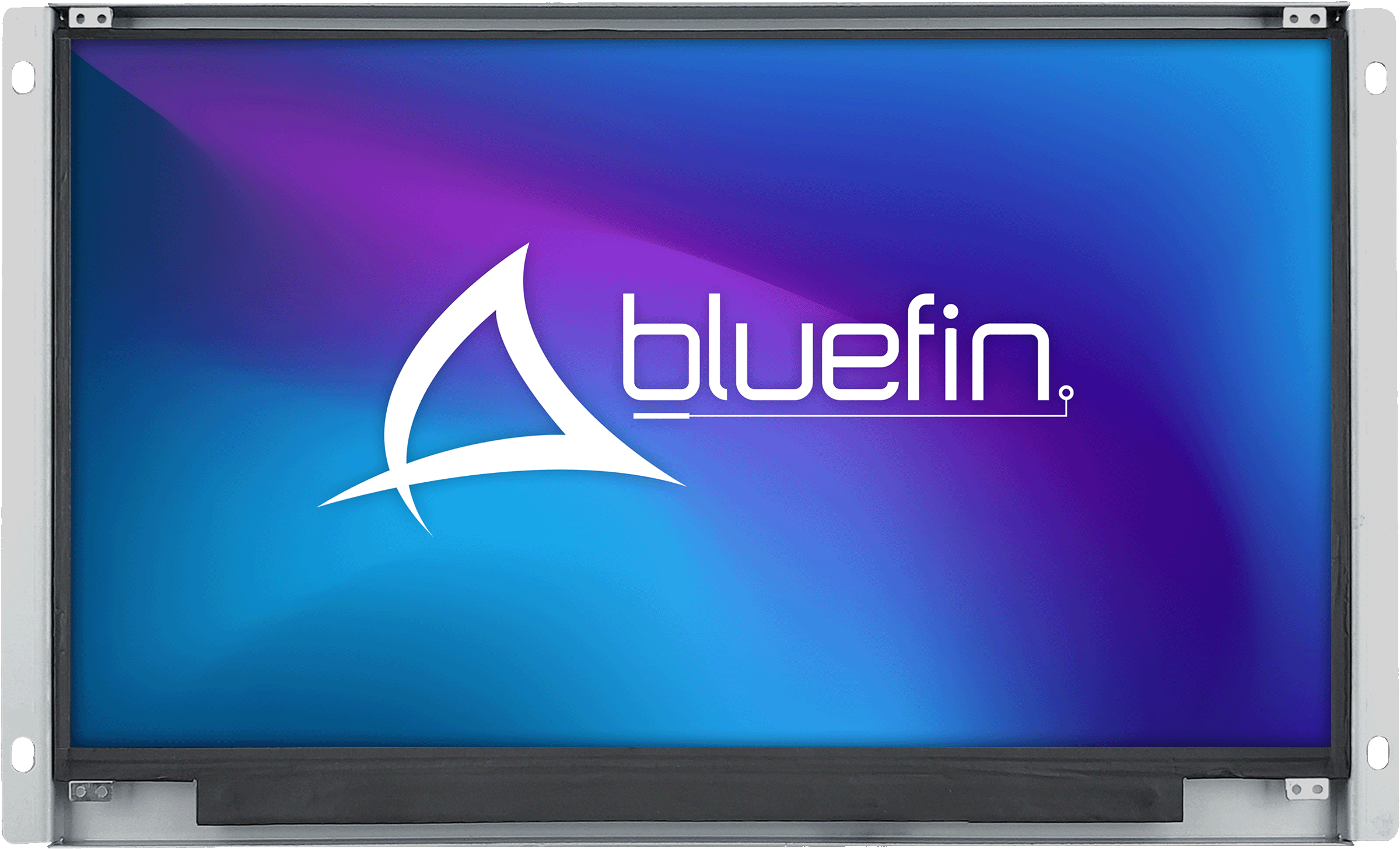

13.3’’ V Series
Ad Player & LCD Monitor
- Finished and Frameless Housings
- 1920x1080 Resolution. 350nit Brightness.
- Optional Touch
Mechanical Drawings and Images
International part numbers may vary. Contact us to ask about customization on existing screens.
Specifications
DISPLAY
13.3'' LCD Screen
Resolution: 1920x1080
Max Brightness: 350 nits
Viewing Angle: 89/89/89/89
Contrast: 900CR
Optional: Capacitive Touch
SYSTEM
Included HDMI Connectivity
Optional touch screens with USB input
Micro-SD Card looping playback
Support for up to 7 push buttons
USB content updates
INPUT / OUTPUT
1x Micro-SD
1x USB 2.0
1x HDMI
7x I2C Button Inputs
1x I2C Motion Sensor Input
2x Stereo 3W Speaker Connectors (Internal speakers included on Finished models)
HOUSING / MOUNTING
Finished
Size: 13'' x 8.5'' x 1.5''
Weight: 5.3 lbs (2.4kg)
Mounting: VESA 100x100mm M4x4mm
Frameless Non-Touch
Size: 13'' x 7.6'' x 1.4''
Weight: 4.9 lbs (2.2kg)
Mounting: VESA 100x100mm M4x6mm
POWER
Adapter Style: Micro Molex
Adapter Output: 12V 2A
Adapter SKU: 20-0150-0603
Frameless Touch
Size: 13.8'' x 8.5'' x 1.7''
Weight: 2.9 lbs (1.3kg)
Mounting: VESA 100x100mm M4x6mm
